What is 21700 Tabless Design?
Blog | Published by Alex on September 12, 2025
In recent years, with the rapid development of electric vehicles, energy storage systems, and high-end consumer electronics, the market has placed increasingly higher demands on lithium-ion batteries: higher energy density, stronger rate performance, safer structures, and faster charging speeds. Against this backdrop, the 21700 battery cylindrical cell has gradually become the mainstream thanks to its superior volumetric energy density. Among many innovations, the “tabless” design stands out as a key breakthrough that significantly enhances the performance of 21700 battery cells. This article provides an in-depth analysis of 21700 battery tabless cells, covering the design principles, advantages, manufacturing processes, technical challenges, and application prospects.
1. Traditional Tab Design and Its Limitations
Traditional Tab Structure
In conventional cylindrical cells (such as
18650 battery and 21700 battery), after winding or stacking, the electrodes are welded with tabs at one end. Tabs act as the outlet for current and are eventually connected to the cell cap or base through welding. Typically, tabs are point-like or strip-shaped, and each electrode sheet only has one or a few tabs welded on one side.
Existing Problems
Uneven current distribution: In a traditional design, current must converge from across the electrode to a limited number of tabs, causing uneven current distribution.
Increased internal resistance: Longer electron pathways reduce current collection efficiency, increasing ohmic loss and heat generation.
Limited rate performance: At high charge/discharge rates, heat generation rises significantly, reducing cycle life.
Thermal management challenges: Tab regions often develop localized hot spots, complicating heat dissipation.
2. Principle of Tabless Design
Definition

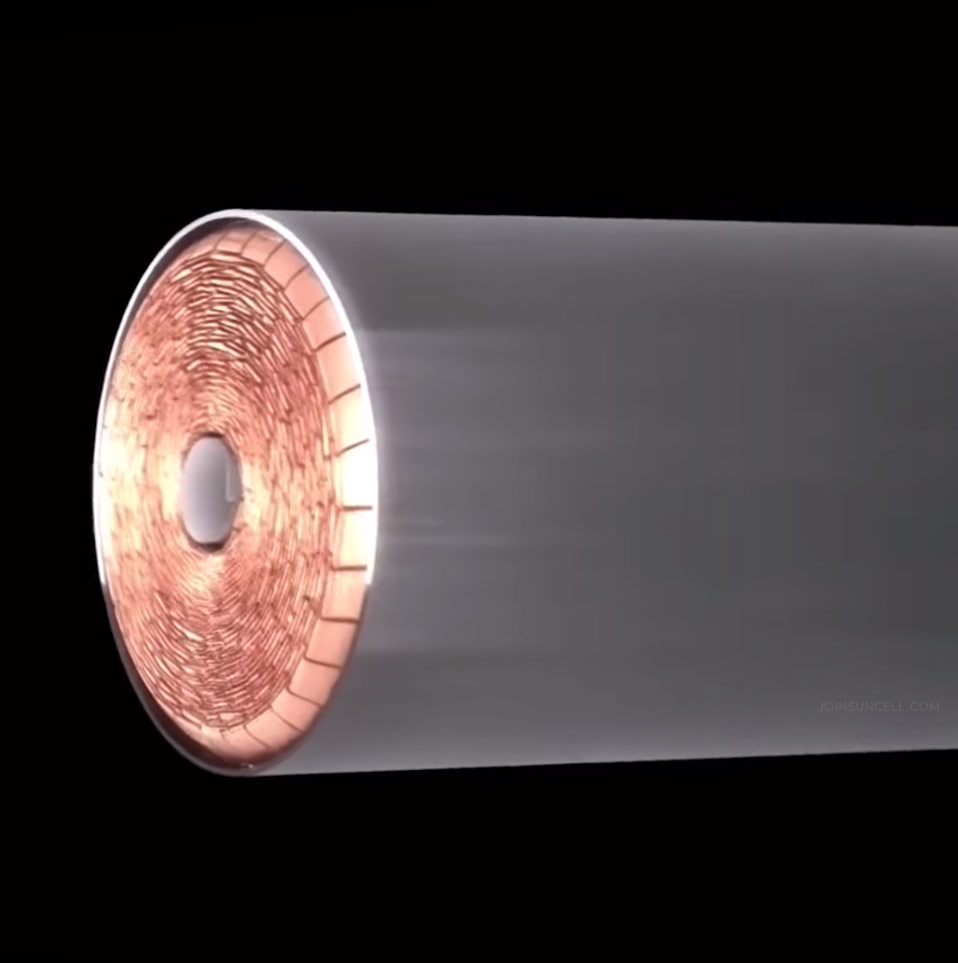

“Tabless” does not mean there are no tabs. Rather, it eliminates single-point tabs and replaces them with a continuous tab-like edge along the entire length of the electrode. In other words, the entire edge of the electrode foil serves as the current collector, directly connected to the cell's end cap.
Operating Mechanism
Current distribution: Current flows evenly across the full edge of the electrode, significantly shortening the electron transport path.
Conductive efficiency: Instead of relying on a few welded points, electrons travel directly through the full-length edge.
Heat dissipation: Even current distribution reduces local hot spots and improves thermal uniformity.
3. Advantages of 21700 battery Tabless Design
Lower Internal Resistance
Because electrons no longer travel long distances to converge at a few tabs, but instead flow uniformly through the electrode edge, internal resistance can be reduced by 10%–20%. Lower resistance directly translates to less heat generation and higher energy efficiency.
Improved Fast-Charging Capability
Lower internal resistance and uniform current distribution enable tabless cells to sustain much higher charging rates. While conventional 21700 battery cells typically support fast charging around 1.5C–2C, tabless designs can achieve 3C or higher safely.
Enhanced Thermal Management
By preventing localized hot spots at the tab region, tabless cells achieve more uniform thermal distribution. This not only increases safety but also reduces reliance on complex external cooling systems.
Longer Cycle Life
Traditional cells experience accelerated aging near tab regions due to uneven current density. Tabless cells reduce localized stress, slowing side reactions and extending cycle life by more than 20%.
Higher Energy Density
Tabless design reduces dead volume associated with tab welding areas, improving volumetric utilization. For 21700 battery cells, this means more active material can be packed within the same size.
4. Manufacturing Process and Technical Challenges
Process Flow
The production of tabless
21700 battery cells follows a similar winding process to conventional cells but differs significantly in collector processing and welding:
Electrode coating: Cathode and anode foils are coated with active material, leaving bare collector foil at the edges.
Electrode cutting: Precision laser cutting or die cutting ensures smooth collector edges for continuous welding.
Winding: During winding, the electrode edges are carefully aligned to form a continuous conductive surface.
End welding: Laser or ultrasonic welding connects the entire electrode edge to the top cap or bottom conductor.
Technical Challenges
High precision requirements: Any misalignment or edge irregularity can cause uneven current distribution or short-circuit risks.
Complex welding: Large-area welding requires advanced, low-damage laser or ultrasonic welding, with narrow process windows.
Cost pressures: Tabless manufacturing demands higher-precision equipment and tighter process control, leading to higher costs.
Consistency control: Ensuring welding consistency across millions of cells in mass production remains a major challenge.
5. Application Cases
Tesla's 4680 Cell
Although this article focuses on 21700 battery cells, the most famous example of tabless design is Tesla's 4680 cell, which achieves both ultra-fast charging and high current output. By comparison, 21700 lithium cells are gradually adopting similar designs for EV and high-power tool batteries.
High-End Power Tools
Leading global power tool brands have applied 21700 tabless cells in cordless tool packs, ensuring stable thermal behavior under high discharge currents.
Energy Storage and Aerospace
In energy storage and aerospace, where cycle life and safety are critical, 21700 tabless cells are gaining traction thanks to their superior thermal management and durability.
6. Future Development Trends
Coupling with High-Nickel and Silicon Anodes
When combined with high-nickel cathodes (e.g., NCM811) and silicon-carbon anodes, tabless structures further unlock fast-charging potential, targeting 10–15 minute full charges for EVs.
Integration with Smart BMS
While tabless reduces resistance and heat at the cell level, pairing with intelligent BMS strategies at the pack level will maximize fast-charging advantages.
Large-Scale Mass Production
As equipment precision improves and manufacturing matures, tabless 21700 battery production costs will gradually fall. Large-scale adoption is expected within the next 3–5 years.
Cross-Sector Applications
Beyond EVs, tabless 21700 cells will find growing roles in medical devices, drones, and high-end stationary storage systems.
Summary
The 21700 battery tabless design represents a significant breakthrough in cell architecture. By optimizing current distribution, reducing internal resistance, improving heat dissipation, and enabling faster charging, it unlocks the full performance potential of 21700 lithium cells.
While challenges remain in manufacturing, cost, and consistency, advances in equipment and materials will drive broader adoption. Looking forward, tabless technology is not only a pathway for 21700 lithium cells but also a key evolutionary step for cylindrical battery design as a whole. It will play an irreplaceable role in advancing the new energy industry and achieving global carbon neutrality goals.
