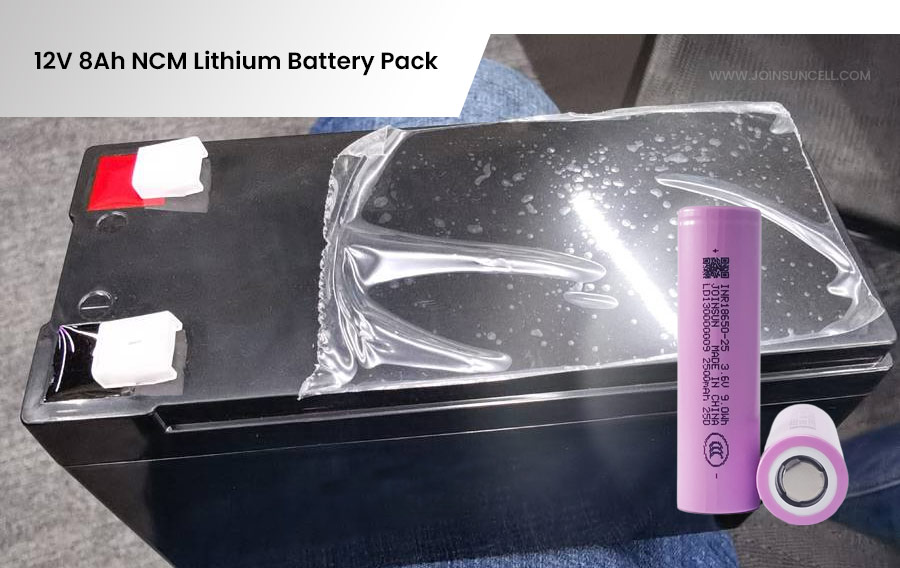

12V 8Ah Lithium Battery Using 18650 Battery NMC Lithium Cells
Blog | Published by Alex on August 5, 2025
Specifications
| Parameters |
SPECS |
| 18650 Battery Cell |
Joinsun 18650-20D NCM Lithium-ion cells
Joinsun 18650-25D NCM Lithium-ion cells
Joinsun 18650-26D NCM Lithium-ion cells |
| Nominal Voltage |
11.1V |
| Max Charging Voltage |
14.6V |
| Nominal Capacity |
8Ah |
| Nominal Energy |
88.8W |
| Max Continuous Charging |
2A |
| Max Continuous Discharge |
5A |
| Peak Discharge |
6A |
| BMS Protection |
Overcharge, over-discharge, overcurrent, and short-circuit protection |
| Cells |
18650 |
| Efficiency |
96% |
| Self Discharge |
2% / Month |
| Dimensions (L × W × H) |
150 × 60 × 94 mm
5.91 × 2.36 × 3.7 inches |
| Weight |
1.25kg
2.76 lbs |
| Terminals |
T1 |
| Communications |
None |
| Charging Temperature |
0°C to 50°C |
| Discharge Temperature |
-20°C to 60°C |
| Casing Material |
ABS Black |
| Cycle Life |
600 cycles (@80% DoD) |
| Certification |
CE, UN38.3, MSDS |
| Applications |
Outdoor Emergency Power Supply, Toy cars, Kid cars, Lights, Solar |
Where i can find the high quality 18650 battery?
Joinsun has vast experience in battery manufacturing and has successfully developed a
2600mAh 5C 18650 battery NMC lithium cell. You are welcome to get in touch with the Joinsun sales team for complete pricing information and technical details.
12V 8Ah NCM Lithium Battery Applications
Physical Structure and Advantages
The application of 12V 8Ah NCM ternary lithium batteries in the field of "portable and emergency power supplies" is remarkably well-suited, a characteristic primarily determined by their physical structure and chemical properties. First, from a physical morphology perspective, the prismatic cell design endows the battery pack with excellent structural stability and installation convenience; unlike cylindrical battery packs, which are prone to rolling, the regular cubic shape allows it to fit snugly into the reserved compartments of various power supply enclosures, thereby saving valuable internal space. Meanwhile, the sturdy metal or flame-retardant plastic outer casing provides superior impact resistance and crush protection for the delicate 18650 cells inside, which is particularly important in emergency scenarios that require frequent handling or may involve minor bumps and knocks.
Electrical Performance and Application Scenarios
From an electrical performance standpoint, the internal configuration of multiple 18650 cells combined in series-parallel arrangements (such as 3S4P) to achieve an 8Ah high capacity, coupled with the inherent energy density advantage of NCM ternary materials exceeding 200Wh/kg, enables the entire pack to weigh only about 1 kilogram while storing nearly 100 watt-hours of electrical energy, perfectly meeting the dual stringent requirements of "lightweight" and "long runtime" for portable emergency power sources. In practical applications, the most common form of such battery packs is integration into outdoor emergency power boxes or portable energy storage power stations as the core energy storage unit; when sudden power outages occur, it can seamlessly switch to provide several hours of emergency power supply for home routers, optical network terminals, and security surveillance cameras, ensuring uninterrupted communication and security systems, or it can deliver life-sustaining power to critical medical devices such as ventilators and oxygen concentrators until utility power is restored or a generator starts up. In outdoor camping or fieldwork scenarios, it can work in conjunction with DC-DC converter modules or small inverters to step up the stable 12V DC power to 19V for charging laptops, or output 5V USB power to recharge mobile phones, tablets, flashlights, camping lights, and other devices, and can even directly drive 12V car refrigerators, portable air pumps, and portable projectors, significantly enhancing the convenience and comfort of outdoor living. Moreover, for solar power enthusiasts, this prismatic battery pack also serves as an ideal choice for building small off-grid energy storage systems; it can receive pulsating current from solar panels through the controller, efficiently converting solar energy into chemical energy for storage during the day, and then release it smoothly at night, providing uninterrupted clean power for monitoring equipment or weather stations in remote areas.
Safety and Conclusion
It is worth mentioning that many products incorporate a built-in smart Battery Management System (BMS) that continuously monitors the voltage, temperature, and charge/discharge current of each individual 18650 cell, and rapidly cuts off the circuit in the event of overcharge, over-discharge, overcurrent, or short circuits, ensuring the highest level of safety protection for both the battery itself and connected devices even in harsh or unattended emergency environments. In summary, this 12V 8Ah ternary lithium battery featuring prismatic packaging and 18650 cells, by virtue of its rugged durability, high energy density, ease of integration, and reliable safety performance, has already become an indispensable core component in the field of portable energy storage and emergency backup power supplies, providing a robust and convenient electrical backbone for modern mobile lifestyles and contingency response.
