Model
型号
|

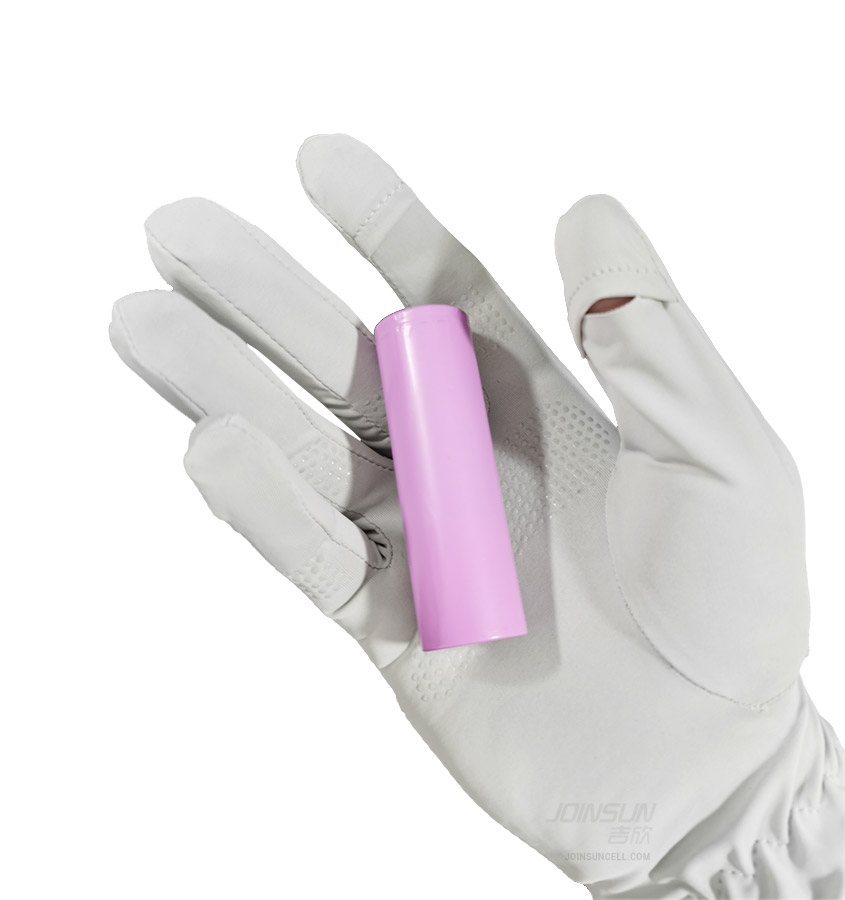

INR21700-40T |
|
Cathode Material
正极材料
|
NCM
三元
|
|
Nominal Capacity
标称容量
|
4000mAh |
|
Rated Capacity
额定容量
|
3900mAh |
|
Nominal Voltage
标称电压
|
3.6V |
|
Max Charge Voltage
最大充电电压
|
4.2V |
|
Discharge Cut-off Voltage
放电截止电压
|
2.75V |
|
Nominal Energy
标称能量
|
14.4Wh |
|
Charge
充电
|
Fast Continuous Charge Rate: 2C
快充持续充电倍率: 2C
|
|
Discharge
放电
|
Max Continuous Discharge Rate: 10C
最大持续放电倍率: 10C
Max Non-Continuous Discharge Rate: 15C
最大非持续放电倍率: 15C
|
|
Cycle Life
循环寿命
|
80% DoD (25°C):
≥400 Cycles (Charge:
≥400 次 (充电:
2C,
Discharge:
放电:
10C)
|
|
Internal Resistance
内阻
|
22 mΩ |
|
Operating Temperature
工作温度
|
Ambient:
电芯周围环境温度:
Charge:
充电:
0~45°C
Discharge:
放电:
-20~60°C
Cell Surface:
电芯表面温度:
Charge:
充电:
0~50°C
Discharge:
放电:
-20~80°C
|
Charge Temperature &
Actual Charge Capacity
(Relative to Nominal Capacity)
不同充电温度下的实际充电量
(相对于标称容量)
|
0°C: 80%
5°C: 90%
25°C: 100%
45°C: 100%
50°C: 95%
|
Discharge Temperature &
Actual Discharge Capacity
(Relative to Nominal Capacity)
不同放电温度下的实际放电量
(相对于标称容量)
|
-20°C: 60%
-10°C: 75%
0°C: 80%
25°C: 100%
45°C: 99%
60°C: 95%
|
|
Storage Temperature
存储温度
|
1 Year:
1年:
0~25°C
3 Months:
3个月:
0~45°C
1 Month:
1个月:
0~60°C
(Recovery ≥90% after storage)
储存后的容量恢复率 ≥90%
|
|
Diameter
直径
|
21.7±0.15mm |
|
Height
高度
|
70.8±0.2mm |
|
Weight
重量
|
69.0±1g |
|
Certifications
认证
|
UL, FCC, CE, RoHS, EU Battery Regulation, IEC, CB, CCC, BSMI, BIS, PSE, MSDS, UN38.3
|
|
Best Uses
适用
|
UAV:
consumer drone, FPV drone, industrial drone, camera drone, photography drone, agri-drone, agricultural drone, delivery drone, racing drone, maping drone, fixed-wring drone, VTOL, nano drone, micro drone, USV, AUV, ROV, security drone, cargo drone, multirotor drone
无人机: 民用无人机、FPV 无人机、工业无人机、航拍无人机、摄影无人机、农业无人机、农用植保机、快递物人机、物流配送无人机、竞速无人机、地理测绘无人机、固定翼无人机、混合翼无人机（VTOL）、迷你无人机、微型无人机、水面无人艇（USV）、自主水下潜航器（AUV）、遥控水下机器人（ROV）、安防无人机、载货无人机、六旋翼无人机
|
| OEM / ODM |
Yes |
| Daily Production Capacity
吉欣工厂日产能
|
250,000 Cells
25万只
|
