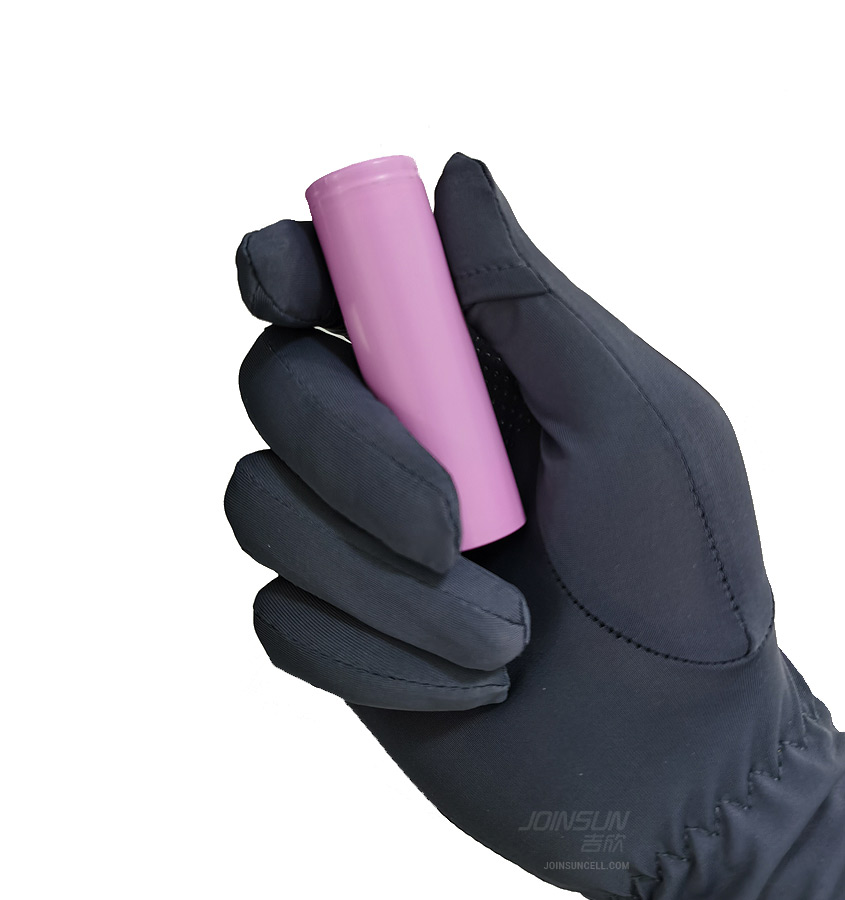

joinsun ifr18650-25d 2500mah

IFR18650-25D 2500mAh Power 动力型

Joinsun IFR18650-25D 2500mAh Power-Type LiFePO4 (LFP) Lithium-ion Cells are UL, CE, RoHS, CCC, and CB certified, suitable for electric scooters, 2-wheel or 3-wheel scooters, self-balancing scooters, electric motorcycles, E-Bikes, electric wheelchairs, power chair, electric tricycle cargo vehicles, electric rickshaws and trishaws, portable power stations, power banks, and more. 吉欣 IFR18650-25D 2500mAh 动力型锂电芯通过了 UL、CE、RoHS、中国3C 和 CB 认证，适用于2轮/3轮电动车，电动代步车，平衡车，电动摩托车，电动轮椅，E-Bike，电动单车，户外电源，充电宝等产品。

Joinsun uses BASF's cathode materials for 18650 and 18650 lithium-ion cells Joinsun uses SHANSHAN's electrolyte for 18650 and 18650 lithium-ion cells Joinsun uses SEMCORP's separator for 18650 and 18650 lithium-ion cells Joinsun uses GUIBAO's anode material for 18650 and 18650 lithium-ion cells Joinsun uses ZET's anode material for 18650 and 18650 lithium-ion cells Joinsun uses JINYANG's steel case for 18650 and 18650 lithium-ion cells

UL Certified Joinsun 18650 / 18650 Lithium-ion Cells FCC Certified Joinsun 18650 / 18650 Lithium-ion Cells CE Certified Joinsun 18650 / 18650 Lithium-ion Cells RoHS Certified Joinsun 18650 / 18650 Lithium-ion Cells IEC Certified Joinsun 18650 / 18650 Lithium-ion Cells CB Certified Joinsun 18650 / 18650 Lithium-ion Cells CCC Certified Joinsun 18650 / 18650 Lithium-ion Cells BSMI Certified Joinsun 18650 / 18650 Lithium-ion Cells PSE Certified Joinsun 18650 / 18650 Lithium-ion Cells BIS Certified Joinsun 18650 / 18650 Lithium-ion Cells

SPECS 规格参数

Model 型号 IFR18650-25D
Cathode Material 正极材料 LFP 磷酸铁锂
Nominal Capacity 标称容量 2500mAh
Rated Capacity 额定容量 2400mAh
Nominal Voltage 标称电压 3.2V
Max Charge Voltage 最大充电电压 3.65V
Discharge Cut-off Voltage 放电截止电压 2.5V
Nominal Energy 标称能量 8Wh
Charge 充电 Standard Continuous Charge Rate: 0.5C 标准持续充电倍率: 0.5C
Max Continuous Charge Rate: 1C 标准持续充电倍率: 1C
Discharge 放电 Max Continuous Discharge Rate: 5C 最大持续放电倍率: 5C
Max Non-Continuous Discharge Rate: 8C 最大非持续放电倍率: 8C
Cycle Life 循环寿命 80% DoD (25°C):
➊ ≥500 Cycles (Charge: ➊ ≥500 次 (充电: 0.5C, Discharge: 放电: 5C)
➋ ≥1000 Cycles (Charge: ➋ ≥1000 次, (充电: 1C, Discharge: 放电: 3C)
Internal Resistance 内阻 22 mΩ
Operating Temperature 工作温度 Ambient: 电芯周围环境温度:
Charge: 充电: 0~45°C
Discharge: 放电: 0~60°C

Cell Surface: 电芯表面温度:
Charge: 充电: 0~50°C
Discharge: 放电: 0~80°C
Charge Temperature &
Actual Charge Capacity
(Relative to Nominal Capacity) 不同充电温度下的实际充电量
(相对于标称容量) 		0°C: 25%
5°C: 35%
25°C: 100%
45°C: 99%
50°C: 90%
Discharge Temperature &
Actual Discharge Capacity
(Relative to Nominal Capacity) 不同放电温度下的实际放电量
(相对于标称容量) 		-20°C: 30%
-10°C: 55%
0°C: 75%
25°C: 100%
45°C: 99%
60°C: 95%
Storage Temperature 存储温度 1 Year: 1年: 0~25°C
3 Months: 3个月: 0~45°C
1 Month: 1个月: 0~60°C
(Recovery ≥90% after storage) 储存后的容量恢复率 ≥90%
Diameter 直径 18.35±0.15mm
Height 高度 65.0±0.2mm
Weight 重量 43.3±1g
Certifications 认证 UL, FCC, CE, RoHS, EU Battery Regulation, IEC, CB, CCC, BSMI, BIS, PSE, MSDS, UN38.3
Best Uses 适用 Electric Vehicle:
Electric scooters, 2-wheel or 3-wheel scooters, self-balancing scooters, electric motorcycles, E-Bikes, electric wheelchairs, power chair, electric tricycle cargo vehicles, electric rickshaws and trishaws, kids' ride-on cars

High-Performance Energy Storage:
Power banks, portable power stations, mobile power devices 载具: 2轮/3轮电动车，电动代步车，电动滑板车，平衡车，电动摩托车，电动轮椅，E-Bike，电动单车，儿童车
高性能储能: 充电宝，户外电源，移动电源
OEM / ODM Yes
Daily Production Capacity 吉欣工厂日产能 250,000 Cells 25万只


Joinsun Grade-A 18650 / 18650 Lithium-ion Cells
