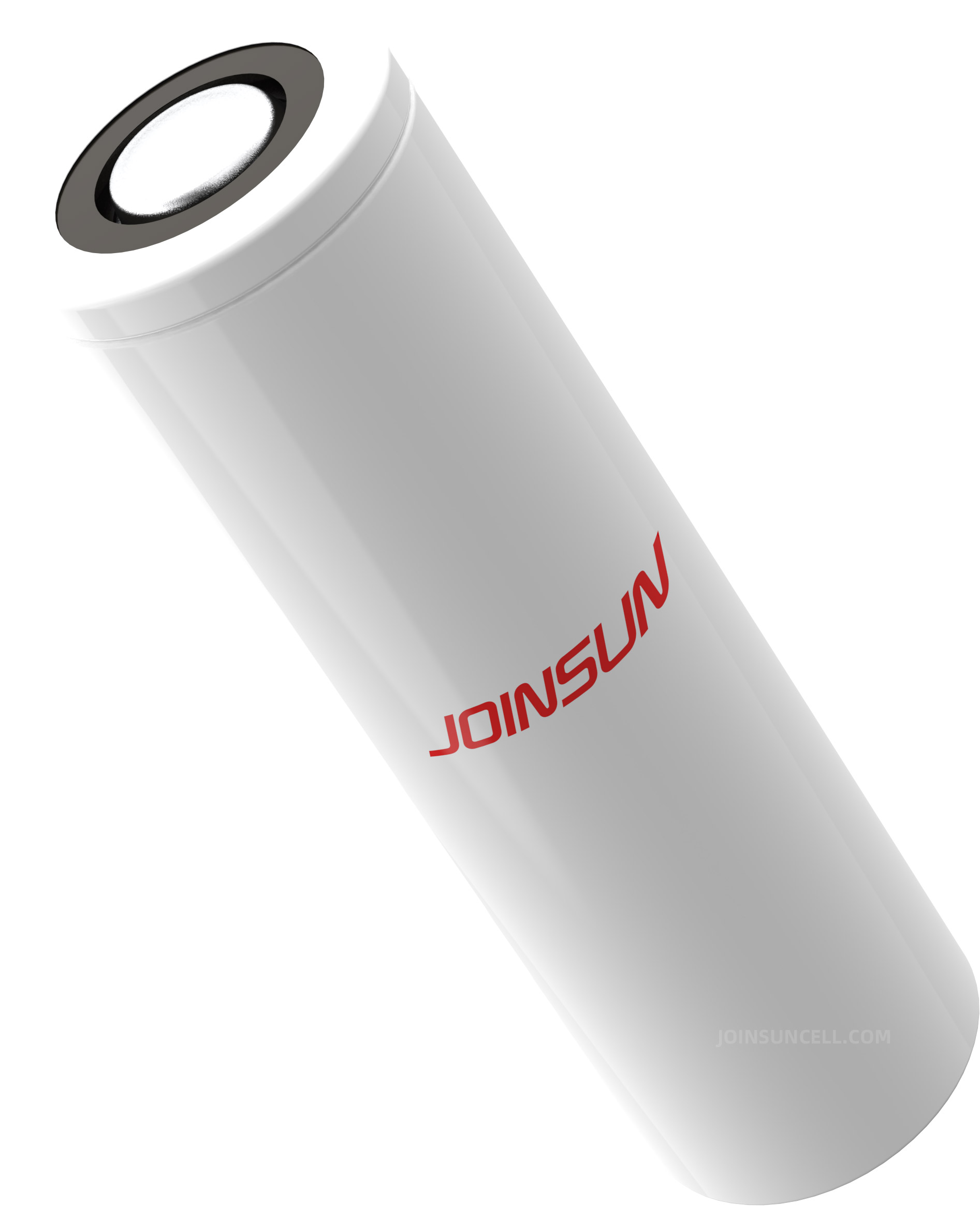

Dual-Tab vs. Triple-Tab vs. Full-Tab - 18650 Battery Tab Technology Comparison

Blog | Published by Alex on July 17, 2026

Introduction

Since its commercialization in 1991, the 18650 cylindrical battery has remained a "veteran" in the lithium-ion industry, thanks to its mature manufacturing infrastructure, robust supply chain, and flexible performance tuning. Among the many design parameters that determine a cell's performance, the tab structure stands out as a critical factor influencing internal resistance, rate capability, and thermal management. The evolution from single-tab to mainstream dual-tab, and now to the emerging full-tab (tabless) architecture, reflects the industry's relentless pursuit of higher power, faster charging, and longer cycle life. This article provides a comprehensive comparison of the dual-tab, triple-tab, and full-tab solutions across structural principles, key performance indicators, manufacturing complexity, cost implications, and commercialization status.

Structural Principles and Current Conduction Mechanisms

The fundamental difference among the three tab configurations lies in the length and uniformity of the current collection path.

Dual-Tab Structure

The dual-tab design—currently the dominant configuration in commercially available 18650 battery - employs one positive tab and one negative tab. To balance internal resistance and energy density, the positive tab is typically positioned at the midpoint of the electrode strip (approximately halfway from the inner core), while the negative tab is placed at the outer end of the strip. This "positive-centered, negative-outer" arrangement aims to shorten the electron transport path on the positive current collector by half, thereby reducing ohmic impedance. From a current conduction perspective, the dual-tab configuration represents a "point-contact" extraction method, where electrons must travel laterally along the full length of the electrode strip (often exceeding 600 mm) to reach the tab weld point—resulting in a relatively long conduction path.

Triple-Tab Structure

The triple-tab design represents a compromise—it adds one additional tab to the dual-tab baseline. According to academic studies, while retaining one centrally-positioned positive tab, adding two negative tabs (one at each end of the electrode strip) yields significant performance improvements, whereas further increasing the number of tabs beyond this point provides diminishing marginal returns. The core rationale is that by providing two extraction points at both ends of the negative current collector, the current distribution across the long electrode strip becomes more symmetrical, reducing localized overpotential and ohmic losses.

Full-Tab (Tabless) Structure

The full-tab design—often referred to as "tabless"—fundamentally overturns the conventional approach. Instead of welding discrete metal tabs, the entire uncoated edge of both positive and negative current collectors serves as the conductive channel. Current no longer needs to travel laterally along the full length of the electrode strip; instead, it flows directly through the end-face of the current collector to the can or current-collecting plate, shortening the conduction path to roughly one-tenth of its original length. For reference, Tesla's 4680 cell—which popularized this architecture—reduces the current conduction distance from approximately 800 mm (in a conventional 18650) to about 80 mm.

Comprehensive Performance Comparison Table

Cost Estimation Methodology

The above percentage estimates are derived based on the following rationale (based on 18650 battery manufacturing cost structure, where electrode manufacturing + assembly account for approximately 55%-65% of total battery cost):
(1) Triple-Tab (+5%~12%) : Adds one tab welding step (including corresponding welding equipment time, tab materials, and CCD inspection) without major equipment replacement. Based on the per-cell manufacturing cost baseline, the added process cost accounts for about 3%-5% of manufacturing cost, translating to approximately +5%~12% of total cell cost. This solution has minimal impact on yield.
(2) Full-Tab (+25%~40%) : Major cost additions include:
A) Current collector plates (one for each electrode): New material cost, accounting for approximately 5%-8% of per-cell material cost;
B) Flattening or laser notching process: End-face treatment of electrode sheets, adding equipment and labor costs;
C) Specialized welding equipment: End-face welding demands much higher precision than conventional spot welding, increasing equipment amortization costs;
D) Extended electrolyte wetting time: Full-tab structure results in tighter electrode stacking, increasing wetting time by 30%-50% compared to conventional designs, reducing production line throughput;
E) Yield loss: Early-stage yield may drop from 98% to 90%-95%, directly increasing the manufacturing cost allocated per qualified cell.

Important Note

It should be emphasized that there is currently no authoritative public data directly stating the exact percentage cost difference between triple-tab/full-tab and dual-tab 18650 battery. The above figures are reasonable estimates based on publicly available process differences and industry cost structures.

Outlook

As full-tab processes mature and production scales up, the cost gap is rapidly narrowing, with yields continuing to climb. Industry consensus anticipates that over the next 3-5 years, the cost premium of full-tab technology (relative to conventional dual-tab designs) is expected to narrow from the current +25%~40% range to approximately +10%~20%, further driving its penetration into broader markets. Additionally, innovative multi-tab solutions (with independent tabs on each electrode layer) reportedly can already achieve cost parity with conventional dual-tab designs, representing a significant variable in the future cost landscape.

Underlying Mechanisms of Performance Differences

From an electrochemical modeling perspective, the impact of tab structure on internal resistance can be quantified using the Transmission Line Model (TLM). When tabs are located on the same side of the electrode strip, internal resistance increases continuously with strip length. When tabs are placed on opposite sides, resistance tends to converge toward a lower value. When a tab is positioned at the midpoint (center-tab design), internal resistance reaches its minimum. The dual-tab solution leverages this principle by centering the positive tab to minimize positive current collector impedance, but the long-path impedance on the negative side remains a significant issue.

The reason full-tab technology achieves a >70% reduction in internal resistance—a step-change improvement—lies in the transition from "point-contact" to "surface-contact" conduction. The effective conductive area increases by 10-20 times, dramatically improving current density uniformity. This fundamentally eliminates the polarization effects and localized hot spots that plague long-electrode batteries under high-rate operation. Furthermore, the reduced heat generation directly translates to improved safety, better cycle stability, and the ability to operate across an ultra-wide temperature range.

Cost Estimation Methodology and Rationale

The cost percentages provided in the table above are not derived from any single authoritative public source—as no such precise data currently exists—but are instead reasonable estimates based on publicly available process descriptions, equipment requirements, material additions, and typical lithium-ion battery manufacturing cost structures.

For a standard 18650 battery, electrode manufacturing and assembly together account for approximately 55%-65% of total cell cost. The following breakdown explains the estimated differentials:

Triple-Tab (+5%~12%)

(1) Process addition: One extra tab welding step, including the associated welding equipment cycle time, tab material cost, and CCD (automated optical inspection) verification.
(2) Equipment impact: Minimal—no major equipment replacement or retooling is required. The added step can be integrated into existing production lines with modest investment.
(3) Yield impact: Small—yield is expected to decline by only 1-2 percentage points (from ~98% to ~96-97%), as the fundamental manufacturing sequence remains unchanged.
(4) Cost translation: The added process cost accounts for approximately 3%-5% of manufacturing cost, which translates to roughly +5%~12% of total cell cost.

Full-Tab (+25%~40%)

(1) Added current collector plates: One plate for each electrode (positive and negative). These are new physical components that add approximately 5%-8% to the per-cell material cost.
(2) Flattening or laser notching process: The electrode strip end-faces must be processed (either mechanically flattened or precision-laser-notched) to enable reliable end-face welding. This adds both capital equipment amortization and labor cost.
(3) Specialized precision welding: End-face welding demands significantly higher alignment accuracy and energy control than conventional spot welding, requiring more advanced (and more expensive) laser welding systems, increasing equipment depreciation costs per cell.
(4) Extended electrolyte wetting time: The full-tab structure—with its tightly stacked electrodes and absence of traditional tab gaps—increases the time required for electrolyte to fully impregnate the electrode stack by 30%-50%, reducing production line throughput and effective capacity.
(5) Yield loss during ramp-up: Early-stage production yields can fall from the industry-standard ~98% to roughly 90%-95%, with even lower figures during initial process development. This directly raises the manufacturing cost allocated to each qualified cell.

Taken together, these factors result in a +25%~40% cost premium over conventional dual-tab cells, with the premium being highest for manufacturers still climbing the learning curve.

Commercialization Status and Application Positioning

Dual-Tab: The Workhorse

Dual-tab 18650 battery remain the undisputed market leader. Among 58 mainstream 18650 battery surveyed by Battery Trading Network, high-rate models accounted for 64% of the total, and the vast majority of these employ the dual-tab design. This solution's strengths—mature processes, stable high yield, and competitive cost—make it fully adequate for consumer electronics, standard power tools, entry-level e-bikes, and many other everyday applications. Top-tier dual-tab products have pushed internal resistance down to about 16mΩ, approaching the practical limit for this architecture.

Triple-Tab: The Academic Middle Ground

The triple-tab design is relatively uncommon in mass-produced commercial cells and remains primarily a subject of academic research and prototype development. Studies have shown that moving from a single negative tab to dual negative tabs yields the most pronounced benefit, while further increasing tab counts beyond three provides rapidly diminishing returns. This suggests that triple-tab could represent a "high-value intermediate" solution—offering meaningful performance gains at moderate cost increments—but it has yet to gain significant commercial traction, perhaps because manufacturers prefer either the proven reliability of dual-tab or the game-changing performance of full-tab.

Full-Tab: The Performance Frontier

Full-tab technology is the current battleground for industry leaders. Since 2025, companies including Bak Battery, JOINSUN, EVE Energy, and Bolang Power have launched full-tab 18650 products in rapid succession. These cells are not aimed at traditional markets but are specifically targeting emerging high-growth applications that demand extreme power density and ultra-fast charging, including:
(1) Data center backup power (BBU) for AI servers and cloud infrastructure
(2) Humanoid robotics requiring high instantaneous power bursts
(3) eVTOL (electric vertical take-off and landing) aircraft with stringent weight and power constraints
(4) High-end cordless power tools and outdoor power equipment

Industry analysts project that by 2030, the global data center BBU market alone will require over 600 million high-rate cylindrical cells, providing a massive addressable market for full-tab technology.

Outlook and Future Cost Trajectory

The evolution of 18650 tab technology is not a simple "replacement" story where one architecture eliminates the others. Rather, it represents a tiered technology portfolio serving different market segments:

(1)Dual-tab will continue to dominate cost-sensitive and moderate-performance applications, where its proven reliability and supply stability are valued.
(2)Triple-tab may find niche opportunities in applications that desire better rate performance than dual-tab can offer but cannot yet justify the cost premium of full-tab—though its commercial future remains uncertain.
(3)Full-tab represents a fundamental performance ceiling reset for the 18650 form factor, enabling applications that were previously impossible with this battery size.

Cost Convergence Ahead

As full-tab manufacturing processes mature and production volumes scale, the cost gap is already beginning to narrow. Industry leaders have reported steady yield improvements throughout 2025, and the industry consensus anticipates that over the next 3-5 years, the full-tab cost premium will shrink from the current +25%~40% range to approximately +10%~20%. At that point, full-tab technology is expected to begin penetrating mainstream markets more aggressively.

A Wild Card: Innovative Multi-Tab Architectures

An emerging alternative worth watching is the multi-tab approach—where each individual electrode layer is equipped with its own tab (typically 20+ tabs per cell). Proponents claim this design achieves internal resistance as low as 2.3-2.5mΩ (comparable to full-tab) while eliminating the need for current collector plates and complex end-face welding, thereby reducing manufacturing cost to near parity with conventional dual-tab cells. If this technology proves scalable and reliable, it could significantly reshape the competitive dynamics of the tab technology landscape.

Summarize

The 18650 battery—far from being an aging platform—is undergoing a profound performance renaissance driven by structural innovation in tab design. The transition from dual-tab to full-tab represents not merely an incremental improvement but a paradigm shift in how current is collected and conducted within a cylindrical cell. By reducing internal resistance by over 70%, enabling 30C+ continuous discharge, cutting charge times to under 10 minutes, and dramatically improving thermal management, full-tab technology is opening doors to entirely new markets for this classic form factor.

At the same time, the cost differentials between architectures remain significant, but they are converging rapidly as learning curves are climbed. Whether through full-tab, multi-tab, or other hybrid approaches, the future of 18650 technology lies in delivering ever-higher power density, faster charging, and lower lifetime cost—ensuring that this "old warhorse" remains relevant for decades to come.
